Semi-automatic filling machine
This machine is a new product upgraded on the basis of the pneumatic filling machine. This machine adopts the most advanced servo drive principle, which makes the filling accurate, and the increase and decrease of the filling volume only needs to be completed on the touch screen. Fast adjustment of filling metering. All parts of the whole machine filled with materials are all made of 316 stainless steel, and all parts that come into contact with materials can be quickly disassembled and assembled. The rack is made of 304 material and fully meets GMP requirements.
bag type and size range
Pack compacity
Available Products
| Filling range: | 50-1000 grams |
| Scope of application: | paste, liquid, micro-bubble products |
| Filling speed: | Calculate 20-45 packs/min |
| Voltage: | AC220V |
| Power: | 1000W |
| Filling accuracy: | ±0.5% (1000g) |
| Machine size: | length 1350mm × width 280mm × 300mm |
The whole machine is made of S304 stainless steel, and the contact material is made of 316 stainless steel. The machine frame is made of 3MM304 stainless steel, which is sturdy and durable.
The drive motor is driven by an advanced servo motor imported from Japan.
PLC cooperates with man-machine interface control

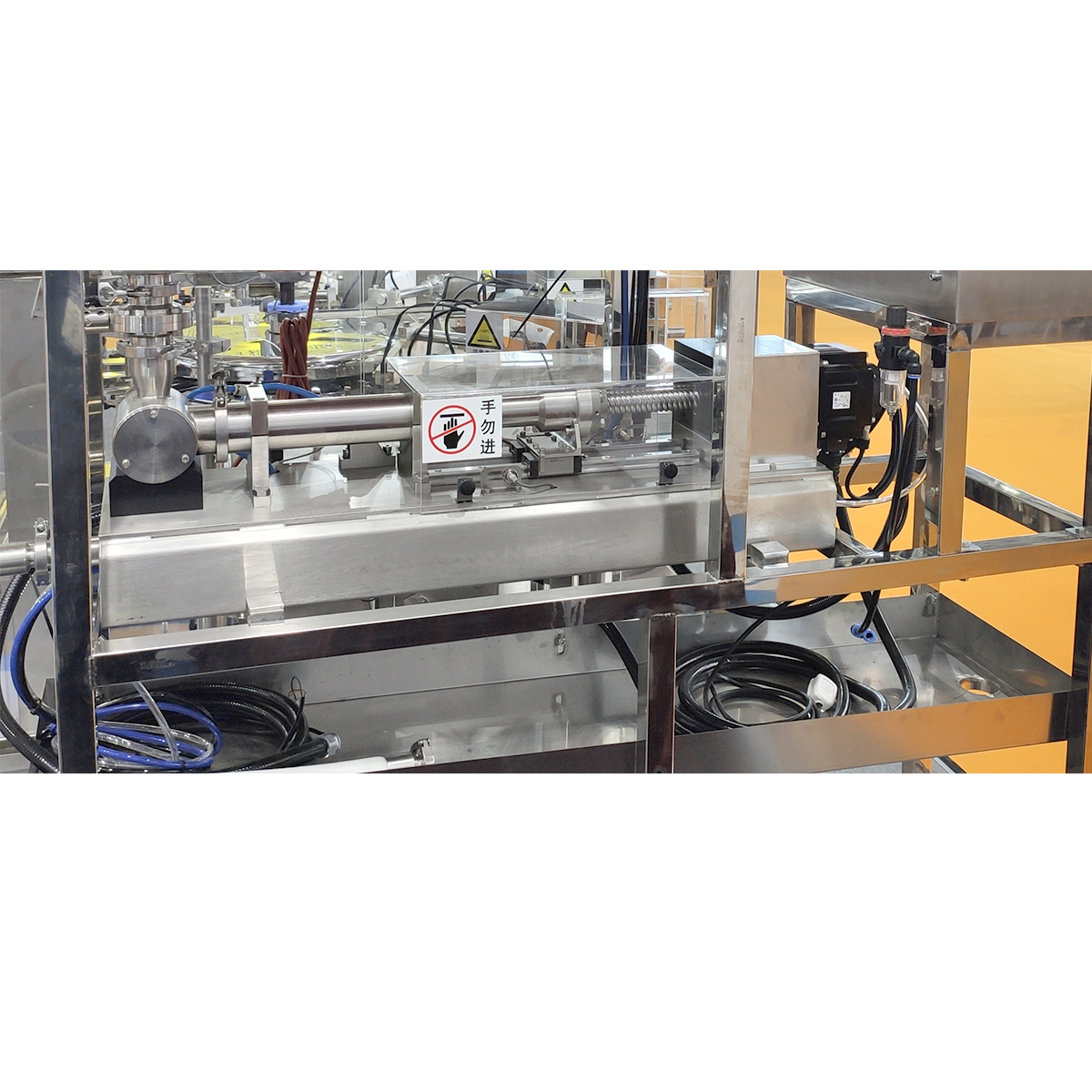

The filling method adopts a piston-type hopper for feeding, and a servo-driven high-precision ball screw drives the piston.
The anti-drip nozzle is controlled by Taiwan AirTAC pneumatic components.
Name | Brand | |
1 | Touch screen | Wei Lun, Taiwan |
2 | Servo motor | mitsubishi |
3 | PLC | mitsubishi |
4 | Low voltage electrical appliances | Schneider |
5 | frame | 3MM stainless steel 304 material |
6 | rack plate | 10MM stainless steel 304 material |
7 | Quantitative cylinder | Wall thickness 3MM 316 material |
8 | Rotary valve (customized) | Wall thickness 15MM 316 material |
9 | Coupling | Miki, Japan |
10 | Ball screw | Taiwan |
11 | proximity switch | Omron Japan |
12 | Motor base (304 stainless steel) | 20MM |
13 | guide | Taiwan |
14 | Pneumatic Components | AirTAC Taiwan |
