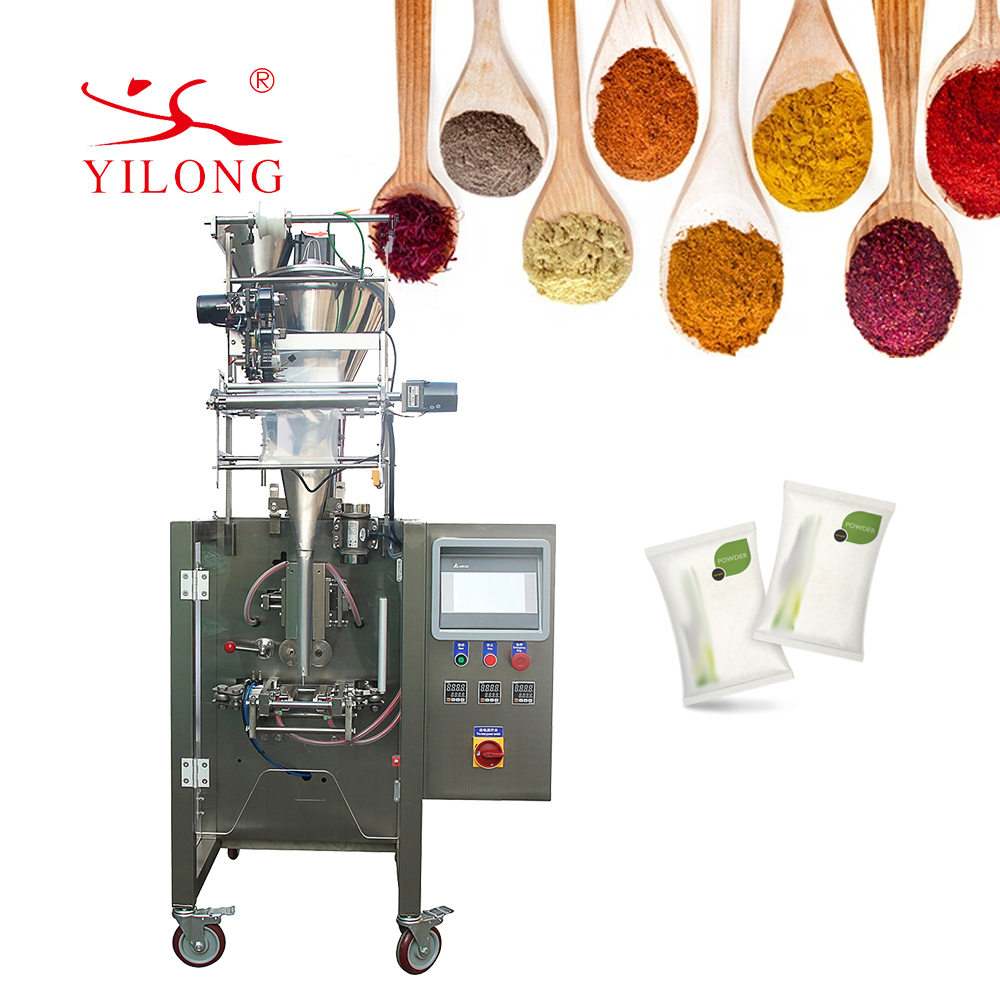

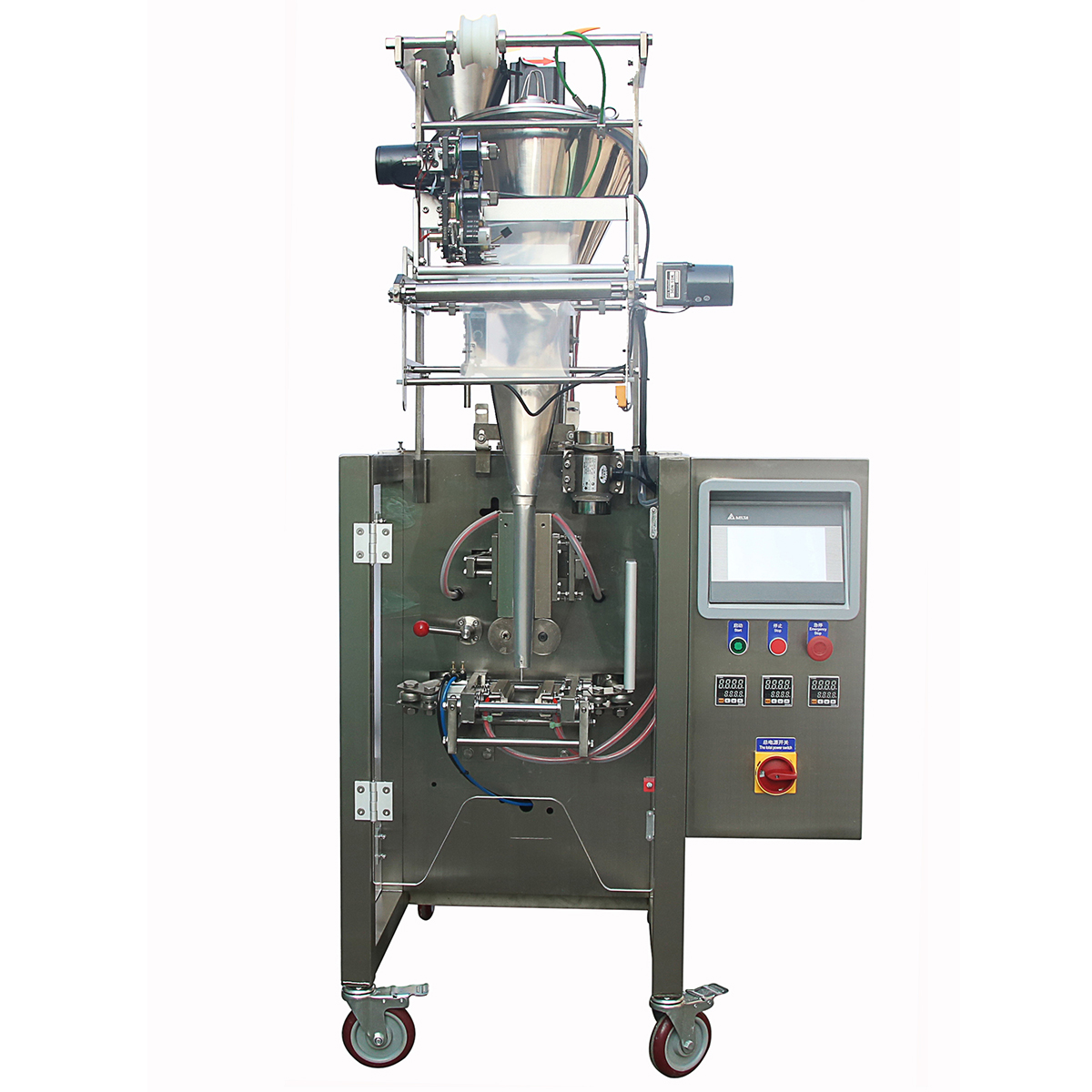

VFFS Powder Packing Machine
VFFS is a small and economic VFFS single-lane stickpack or sachet packing machine that forms, fills, and seals pouches and sachets in one automatic process. Three models of these machines are suitable for powders, liquid. paste, grain, or granular products. The machine can be customized to make 4-side seal sachets, 3-side sea sachets, back-sealed stickpacks, and shaped bags to suit your individual needs. The stickpacks can be of zagged edges or plain cut or can have smart-looking shaped cut with a tear-notch.
bag type and size range
Pack compacity
Available Products
| Parameters | 300P | 300G | 300L |
| Material | Body: SS304 (Stainless Steel) SS316 Option | Body: SS304 (Stainless Steel)SS316 Option | Body: SS304 (Stainless Steel), SS316 Option |
| MeasuringTechnology | Auger Filler for Powder Packing | Volumetric Cup Filler for Granular Item Packing | Piston Pump Filler for Liquid Packing |
| ControllerTechnology | Programmable Logic Controller (PLC) & HMI Touch Screen | Programmable Logic Controller (PLC) & HMI Touch Screen | Programmable Logic Controller (PLC) & HMI Touch Screen |
| Bag Type | Back Sealed Stickpack, ThreeSide-Seal or Four-Side-Seal Bag Options | Back Sealed Stickpack, ThreeSide-Seal or Four-Side-Seal BagOptions | Back Sealed Stickpack, ThreeSide-Seal or Four-Side-Seal BagOptions |
| Filling Range | 0~50 mL | 0~50 mL | 0~50 mL |
| Bag Length | 50~230 mm | 50~230 mm | 50~230 mm |
| Bag Width | 30~120 mm (One size within this range to be fixed) | 30~120 mm (One size within this range to be fixed) | 30~120 mm (One size within this range to be fixed) |
| Packaging Film | Laminated Film, OPP/CPP,OPP/CE, PET/PE, NILO/PE, PE | Laminated Film, OPP/CPP,OPP/CE, PET/PE, NILO/PE, PE | Laminated Film, OPP/CPP,OPP/CE, PET/PE, NILO/PE, PE |
| Packing Speed | 30 - 40 bags/min | 30 - 40 bags/min | 30 - 40 bags/min |
| Filling Accuracy | ±1 ~2% Depending on Packet Size | ±1 ~2% Depending on Packet Size | ±1 ~2% Depending on Packet Size |
| Power & Supply Voltage | 1.5 kW, 220V,50/60Hz | 1.5 kW, 220V,50/60Hz | 1.5 kW, 220V,50/60Hz |
| Crate Dimensions(LxWxH) | 1100mmx 1000mm x 2000mm | 1100mmx 1000mm x 2000mm | 1100mmx 1000mm x 2000mm |
| Gross Weight | 300kg | 300kg | 300kg |
| Net Weight | 250kg | 250kg | 250kg |
Bag Types
This single-lane granular and free-flowing powder packing stickpack machine can be customized to produce back-sealed stickpacks, shaped stickpacks, and 3-side and 4-side sealed sachets.
Filler Options
Auger Filler (for powder products)
Volumetric Cup Filler (for grains)
Tablet Counting Filler (for tablets)
Piston Pump Filler (for liquid products)
Standards
In accordance with CE Standards
Optional Equipment
Screw elevator/conveyor for automatic continuous feeding of powder products
Z-bucket elevator for automatic continuous feeding of granular products
Agitator/mixer for liquid or paste products
Product counter and stacking belt conveyor
Extra filler equipment for different powder, granular, liquid, or part type products packaging in a single machine. The choices are: volumetric cup filler, multi-head weigher, piston pump filler, auger filler, tablet counting filler, and vibrating filler
a).Tools：
Number | name | quantity |
1 | Tool box | 1 |
2 | Allen key | 1set |
3 | Open spanner | 1set |
4 | Iron brush | 1 |
5 | Philips screwdriver | 1 |
6 | slotted screwdriver | 1 |
Output belt
