Ready-to-eat food packaging machine

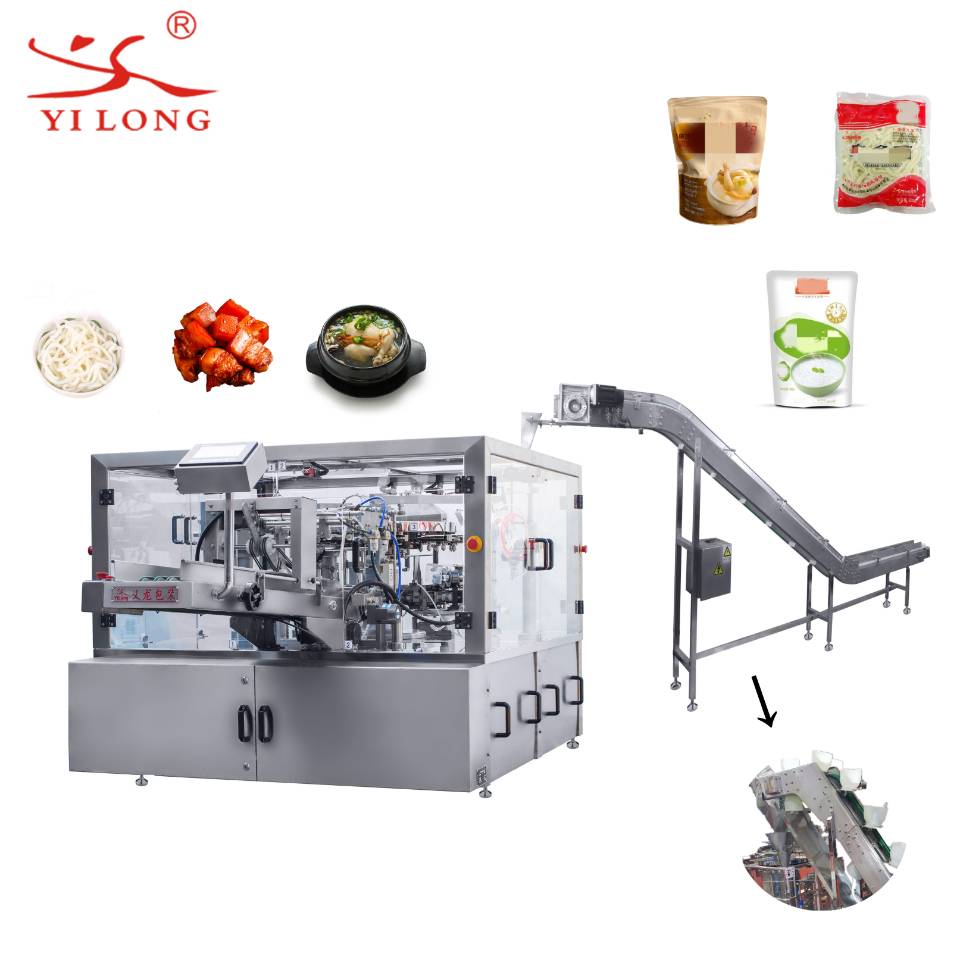

Ready-to-eat food packaging machine is equipped with bowl elevator as the filling system and Rotary Packing Machine as the packing system, it is widely applied to pack instant food, such as instant meat, instant porridge, instant soup, instant noodles and so on. Suitable bag types: Flat pouch, Standup pouches or doypacks.
bag type and size range
Pack compacity
Available Products
| Power supply | 380v 3phase 50Hz |
|---|---|
| Compressed air | about 5～8kgf/cm²，0.4m³/min |
| Drive method | Cam |
| Fill station | 2 |
| sealing style | straight/net type |
| Workstation | 8/10 station |
| Min bag width | 80mm |
| Max bag width | 305mm |
| Noise from running machine | within 75db |
With a device can against sealing vacant pouches to make sure that if there is no fill, there will be no seal.
With a device can against sealing vacant pouches to make sure that if there is no fill, there will be no seal.
Patented gripper system
maximum precision
flexible pouch type: stand-up pouches with zipper or corner spouts, quad pouches and pouches with customers’ design
Flexible production speed 15-90 pouches/min.Easy to operate, PLC control, with touch screen man-machine interface control system, easy to operate.
Long work time and lifetime can work 24 hours a day, only one day off for maintenance per month.
Easy to operate and maintain, one person is enough.
Easy conversion with different scales, fillers，pumps.
High profitability can replace at least 7 workers for packaging.
Low energy and maintenance costs, only a few spare parts need to change.
Fast delivery of spare parts, for example, max 3 normal days to reach you
a).Tools：
Number | name | quantity |
1 | Tool box | 1 |
2 | Allen key | 1set |
3 | Open spanner | 1set |
4 | Iron brush | 1 |
5 | Philips screwdriver | 1 |
6 | slotted screwdriver | 1 |
Metal detector
check weigher
inkjet printer
third seal
bowl elevator
